Wing-Back Upholstered Counter Stool with Open Cut-Out and Tone-on-Tone Chalk Frame (BC-178)

A sculpted wing-back counter stool with two upholstered panels that taper and flare in a single continuous gesture, featuring a signature open cut-out between seat and backrest for visual lightness, fully upholstered in fine structured woven fabric, built on a 15×30mm-to-Ø16mm tone-on-tone chalk powder-coated steel frame with an integrated footrest rail, featuring a 640mm seat height — engineered for residential kitchen islands, boutique café counters, and hospitality contract counter seating.

$0.00
By GEYA Seating
Fabric
Color
Request a Quote
WhatsApp Inquiry
View details

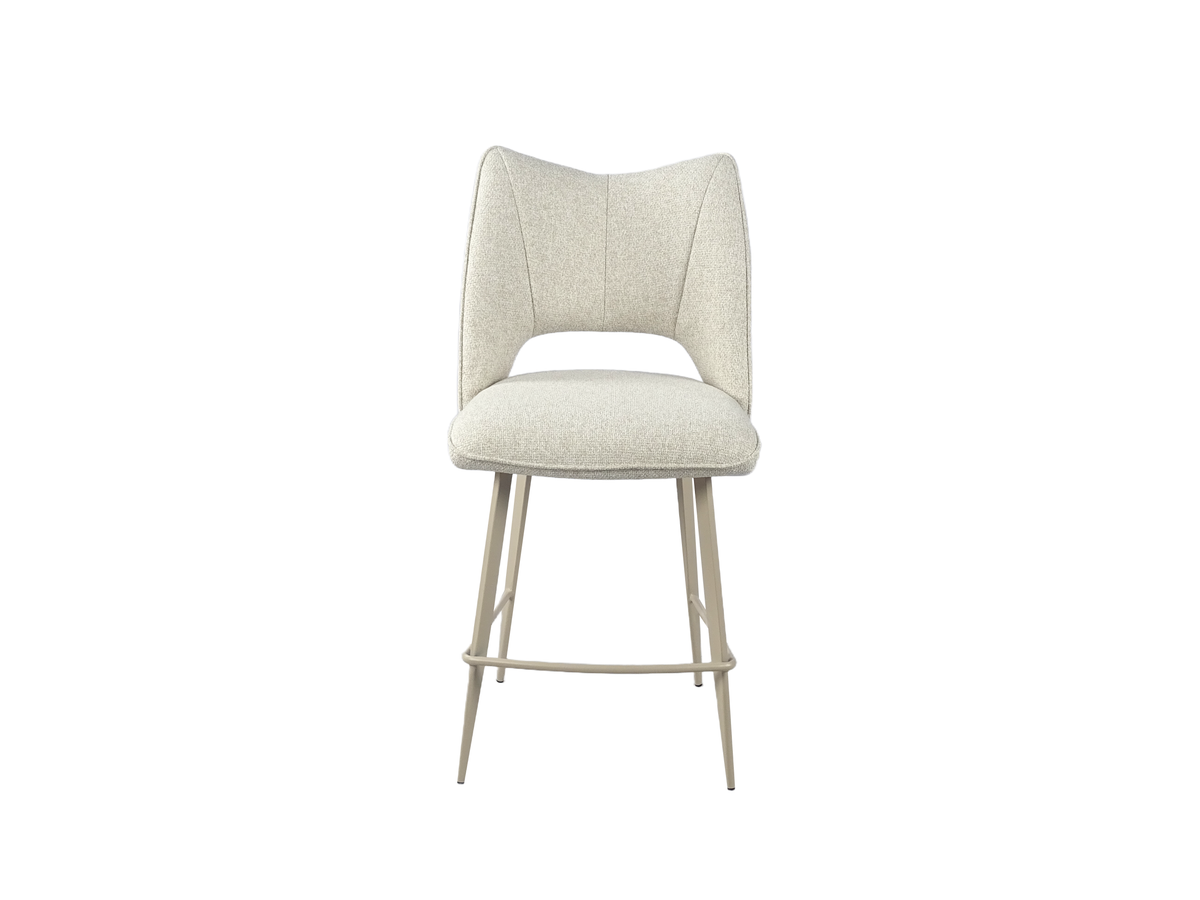

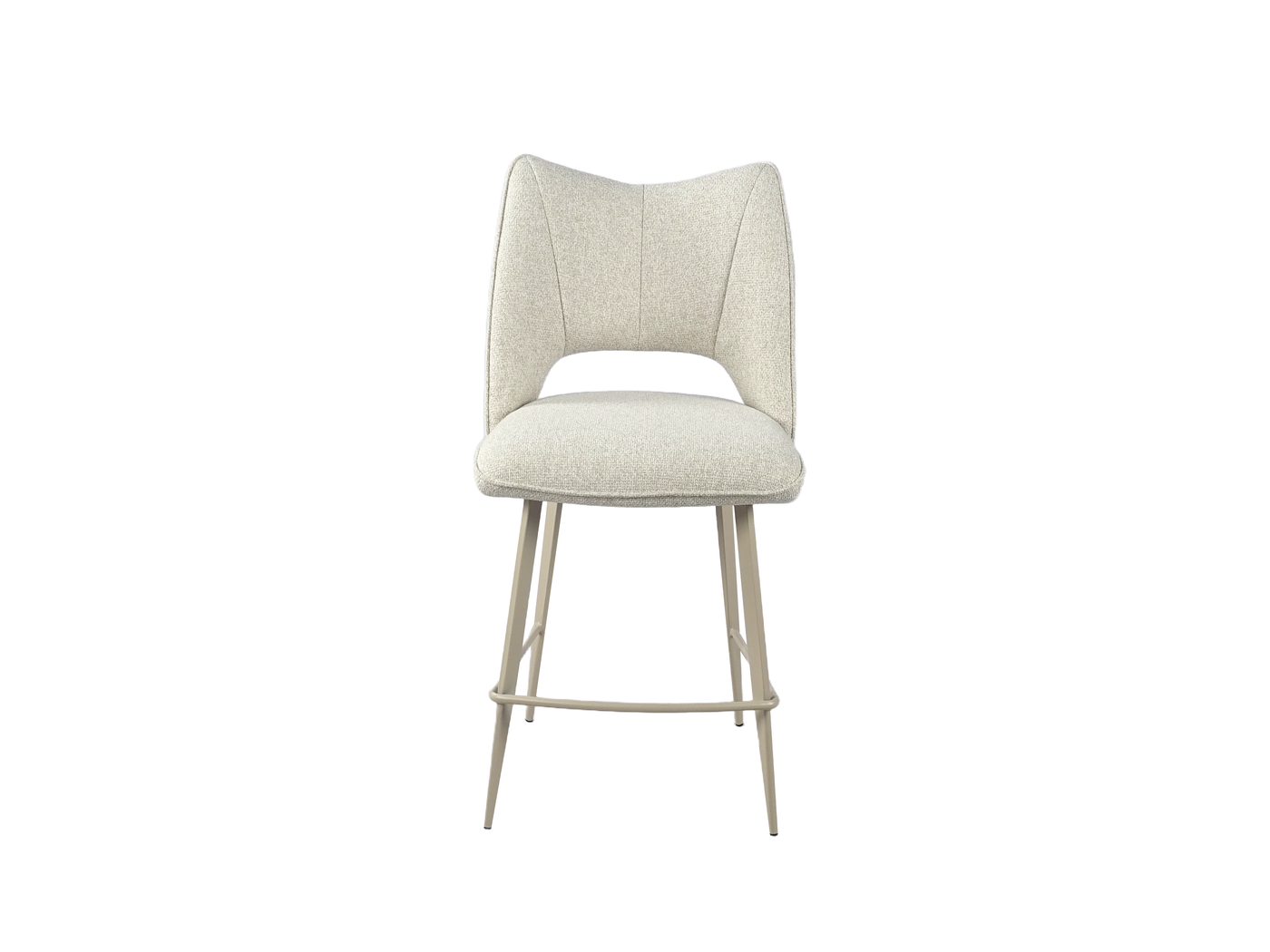

Wing-Back Upholstered Counter Stool with Open Cut-Out and Tone-on-Tone Chalk Frame (BC-178) — Front View — GEYA BC-178
Front View

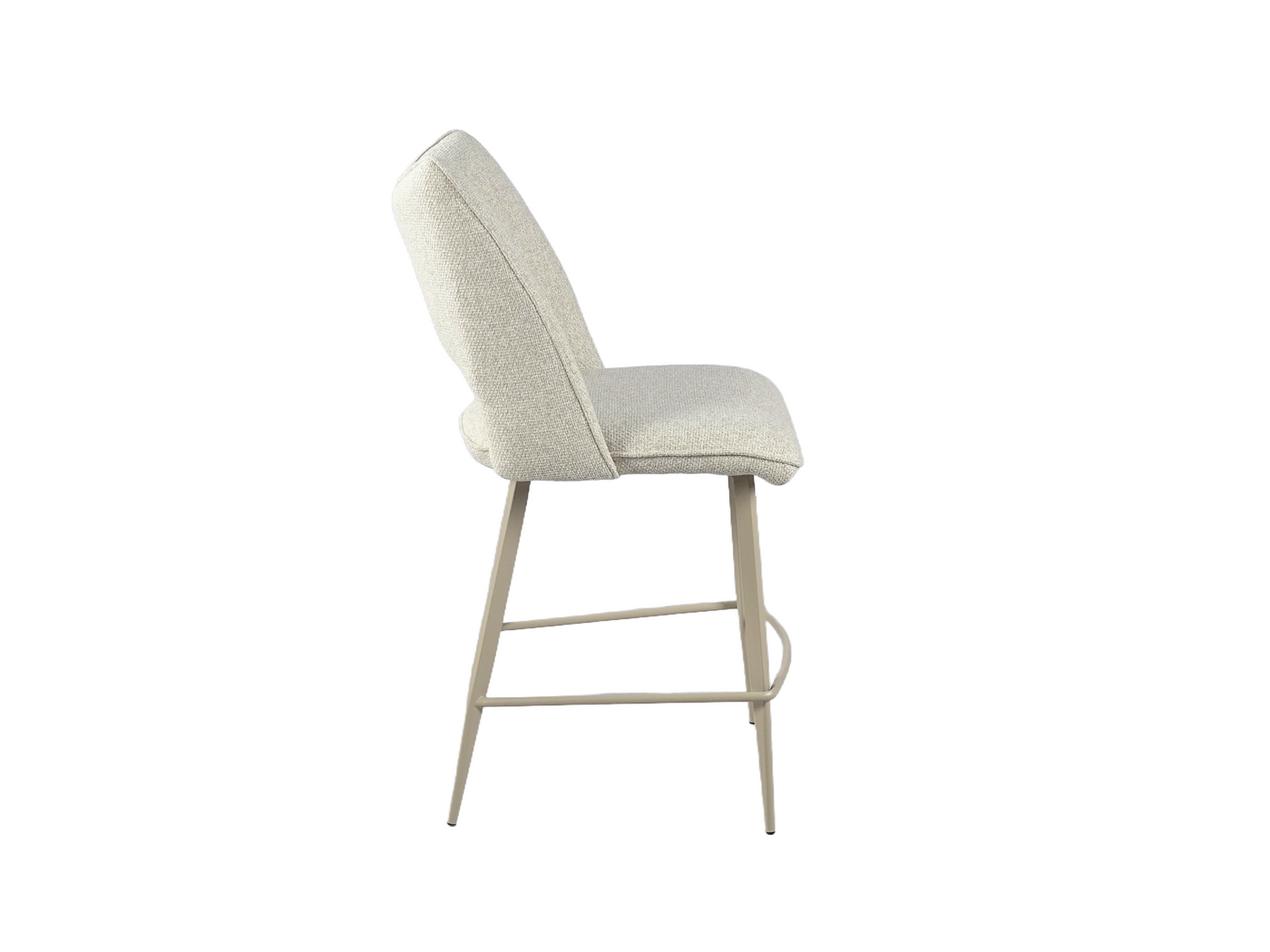

Wing-Back Upholstered Counter Stool with Open Cut-Out and Tone-on-Tone Chalk Frame (BC-178) — Side View — GEYA BC-178
Side View

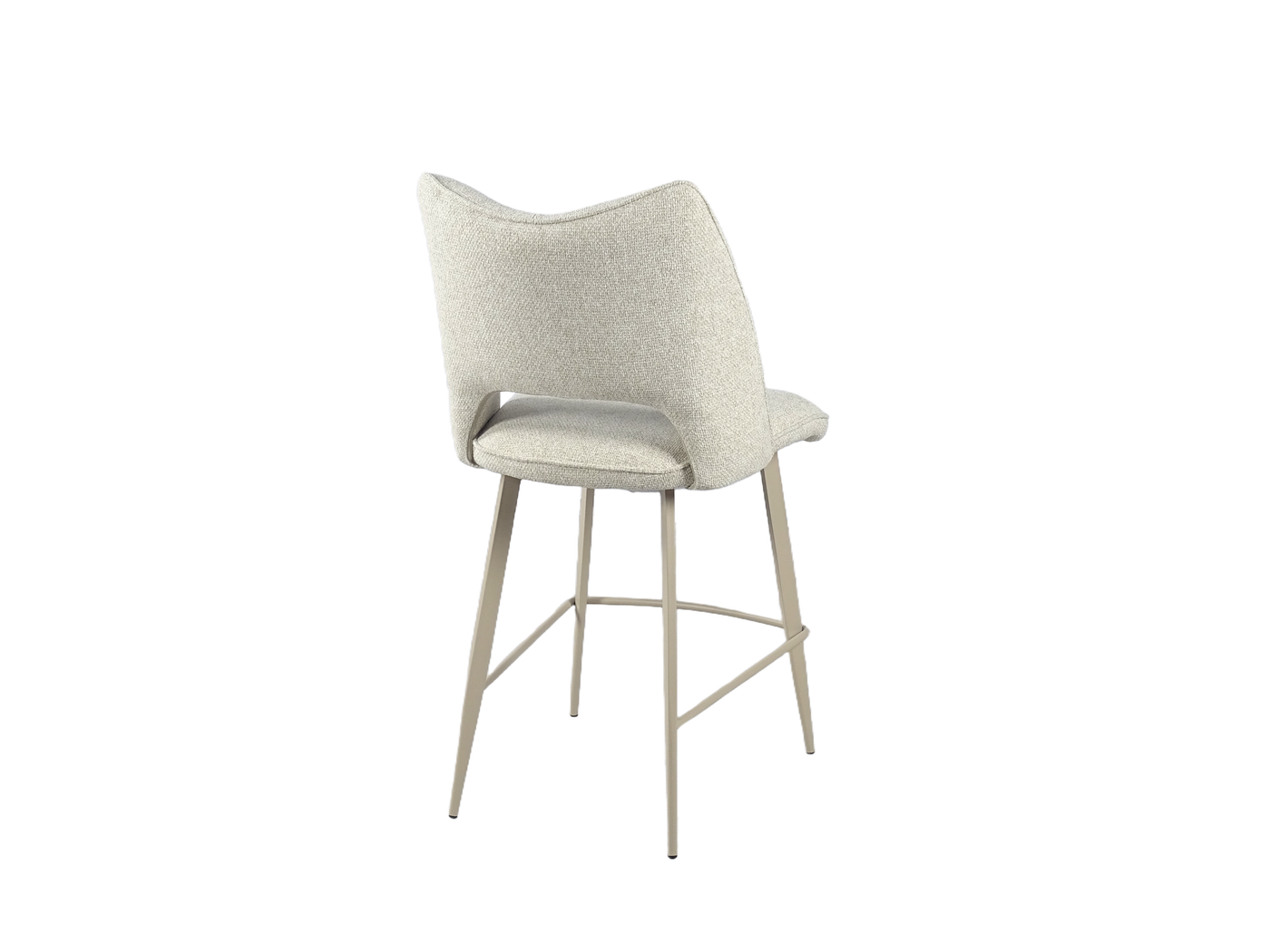

Wing-Back Upholstered Counter Stool with Open Cut-Out and Tone-on-Tone Chalk Frame (BC-178) — Rear View — GEYA BC-178
Rear View

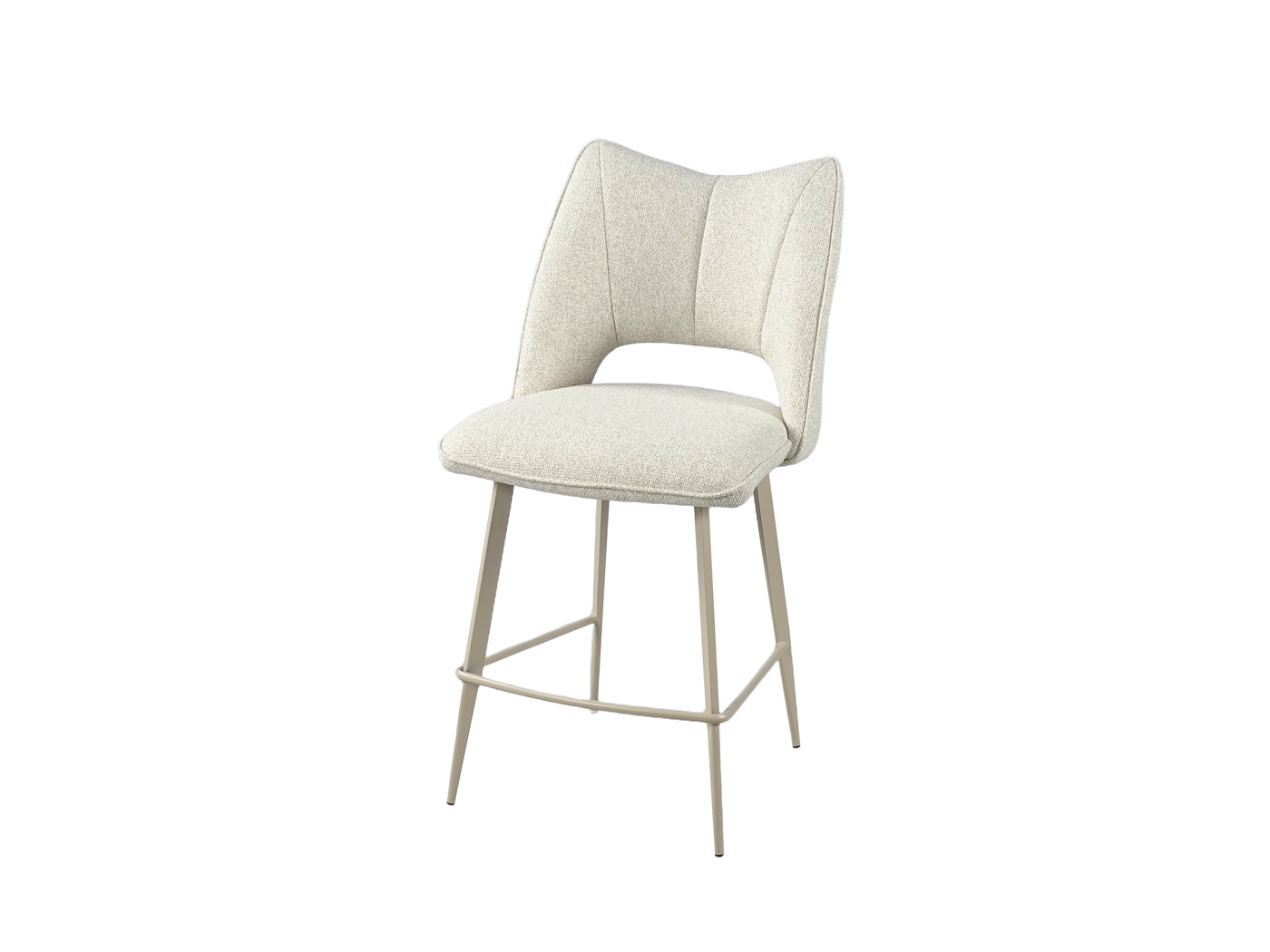

Wing-Back Upholstered Counter Stool with Open Cut-Out and Tone-on-Tone Chalk Frame (BC-178) — Three-Quarter View — GEYA BC-178
Three-Quarter View

Nominal Dimensions & Technical Specifications

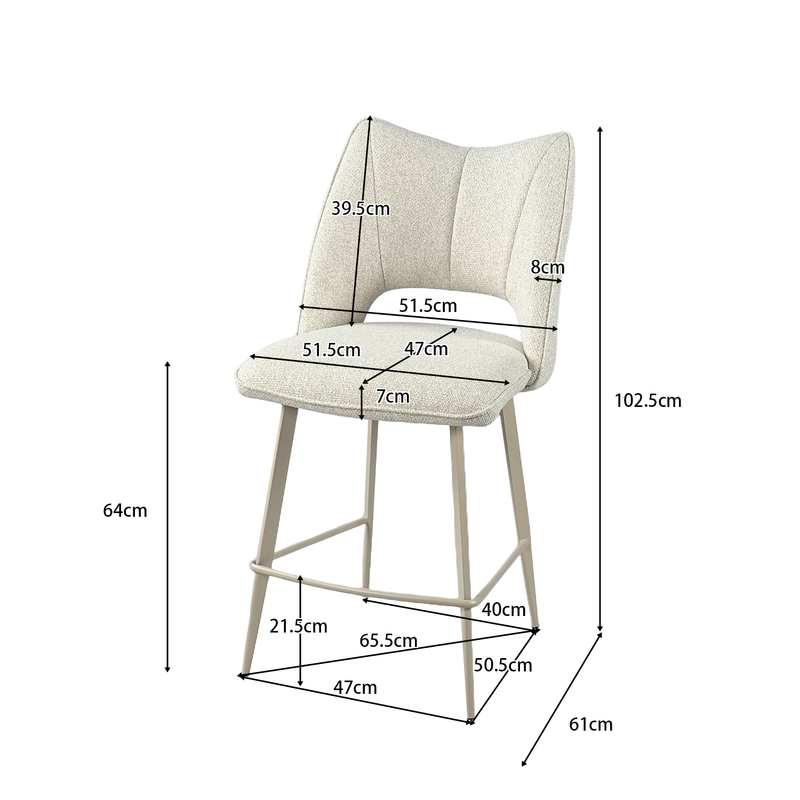

BC-178 Dimensions — Width, Depth, Seat Height (cm) — GEYA Seating
  • Overall Height 1025 mm
  • Overall Width 515 mm
  • Overall Depth 610 mm
  • Seat Height 640 mm
  • Seat Width 515 mm
  • Seat Depth 470 mm
  • Seat Thickness 70 mm
  • Backrest Width 395 mm
  • Backrest Height 395 mm
  • Backrest Thickness 80 mm
  • Footrest Height 215 mm
  • Front Leg Span 470 mm
  • Rear Leg Span 505 mm
  • Footrest Rail Width 655 mm
  • Footrest Rail Depth 400 mm

Note: All dimensions are approximate. A tolerance of ±1.5 cm is expected due to manual measurement and the flexible nature of upholstery materials.

Design Insights & Craftsmanship Details

Design Highlights

The BC-178 is a counter stool defined by its wing-back silhouette — two upholstered panels that rise from the seat, taper inward at the centre, and flare outward at the top, creating a backrest that feels both architectural and embracing. The open cut-out between seat and backrest lifts the form visually, preventing the stool from reading as heavy despite its generous proportions. Wrapped in SANTI woven fabric, the surface carries a fine structured texture that shifts subtly between warm and cool tones as light moves across it. The tone-on-tone chalk frame recedes quietly, letting the distinctive wing profile carry the room.

  • Wing-Back Profile: Two upholstered panels taper and flare in a single continuous gesture — structurally precise, visually distinctive.
  • Open Cut-Out: The deliberate gap between seat and backrest reduces visual weight and gives the stool a lighter, more considered presence at counter height.
  • SANTI Woven Fabric: Fine structured weave with natural warmth, equally at home in a residential kitchen or a boutique café setting.
  • Tone-on-Tone Chalk Frame: Frame and upholstery share the same warm chalk palette, presenting the stool as one cohesive, considered object.
  • Versatile Application: Suited to residential counter living, café bar counters and hospitality projects that value refined restraint over decoration.

Technical Specifications

  • Model Code: BC-178
  • Upholstery: Structured Woven Fabric (OTE SANTI Series)
  • Frame Material: Refined Carbon Steel
  • Tube Specification: 15×30mm rectangular tube, reduced to 16mm round tube at joints
  • Surface Treatment: Tone-on-tone chalk powder coating
  • Seat Height: 640 mm
  • Seat Depth: 470 mm
  • Back Thickness: 80 mm
  • Seat Cushion Thickness: 70 mm
  • Overall Height: 1025 mm
  • Overall Width: 515 mm
  • Overall Depth: 610 mm
  • Footrest: Integrated footrest rail
  • Customization: Supports bespoke upholstery colors and frame finishes for project orders
