Diamond-quilted mid-back faux leather side chair in Olive Green with black sand-grain powder-coated steel legs — GEYA Seating DC-3063
Diamond-quilted mid-back faux leather side chair in Cognac with tapered black sand-grain steel legs — DC-3063

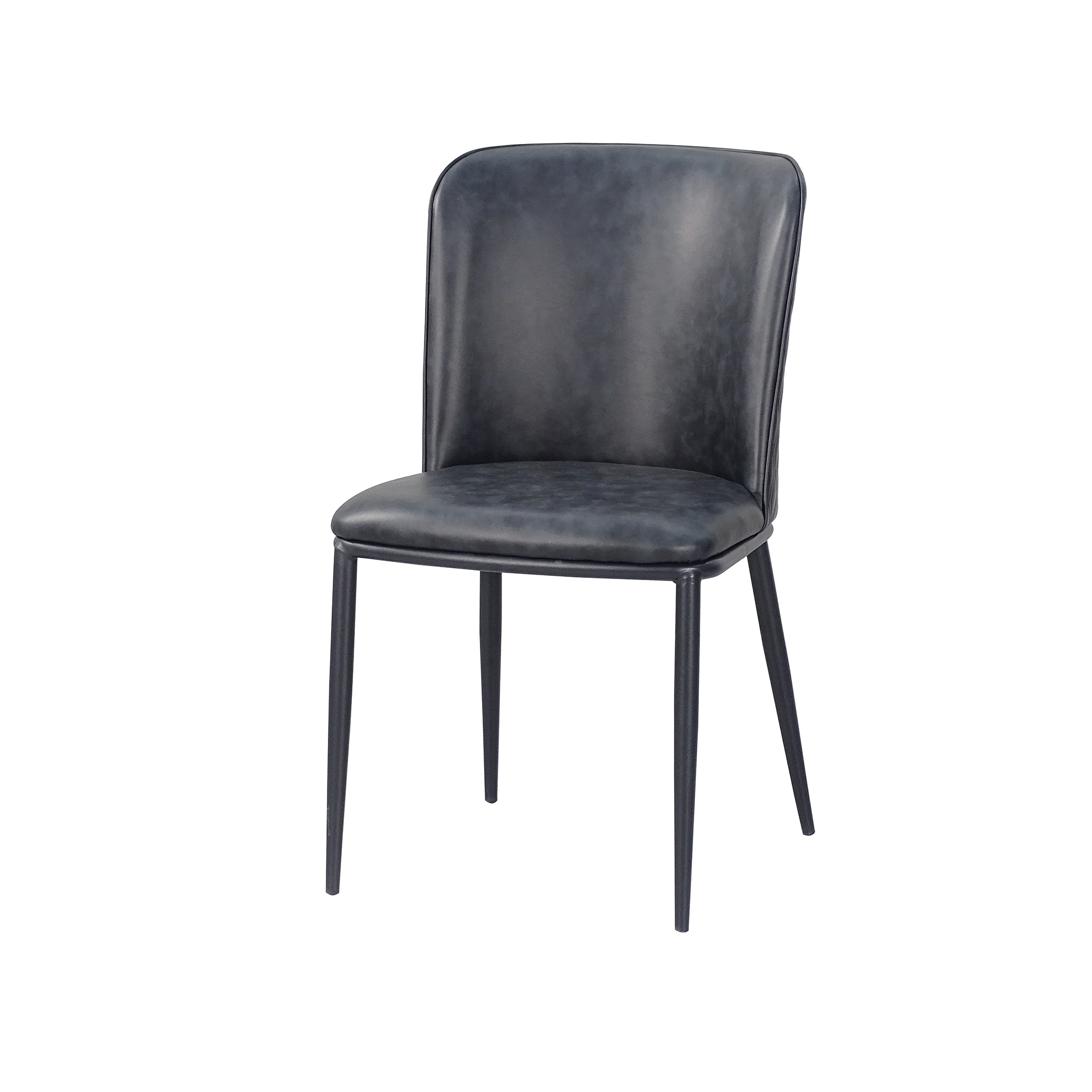

Mid-back cloud-effect faux leather side chair in Charcoal Grey on black sand-grain powder-coated four-leg steel frame — DC-3063

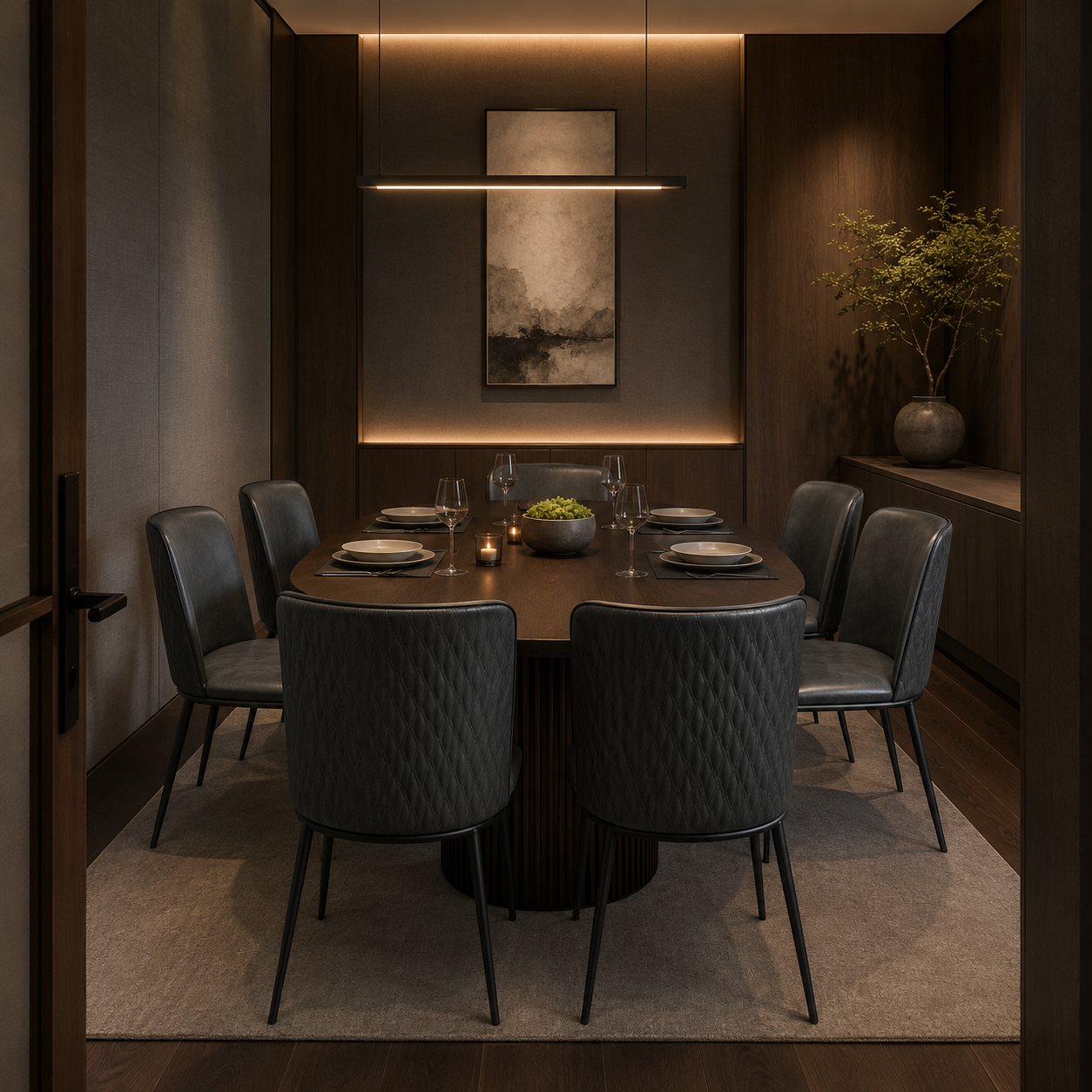

Charcoal grey mid-back faux leather side chairs arranged around oval dark wood table in private dining room with warm panel lighting — DC-3063

Diamond-Quilted Mid-Back Faux Leather Side Chair (DC-3063)

The DC-3063 mid-back faux leather dining chair is upholstered in cloud-effect PU leather with subtle tonal variation across the surface. A smooth inner back is paired with diamond-quilted detailing on the outer back, finished with continuous tonal piping. The Ø28 mm round steel tube frame tapers to Ø16 mm legs with a black sand-grain powder-coated finish — no crossbars, open floor profile. 480 mm overall width. Built for residential dining, boutique restaurants and hotel dining contract orders.

$0.00
By GEYA Seating
Fabric
Color
Request a Quote
WhatsApp Inquiry
View details

Product Views & Design Profile

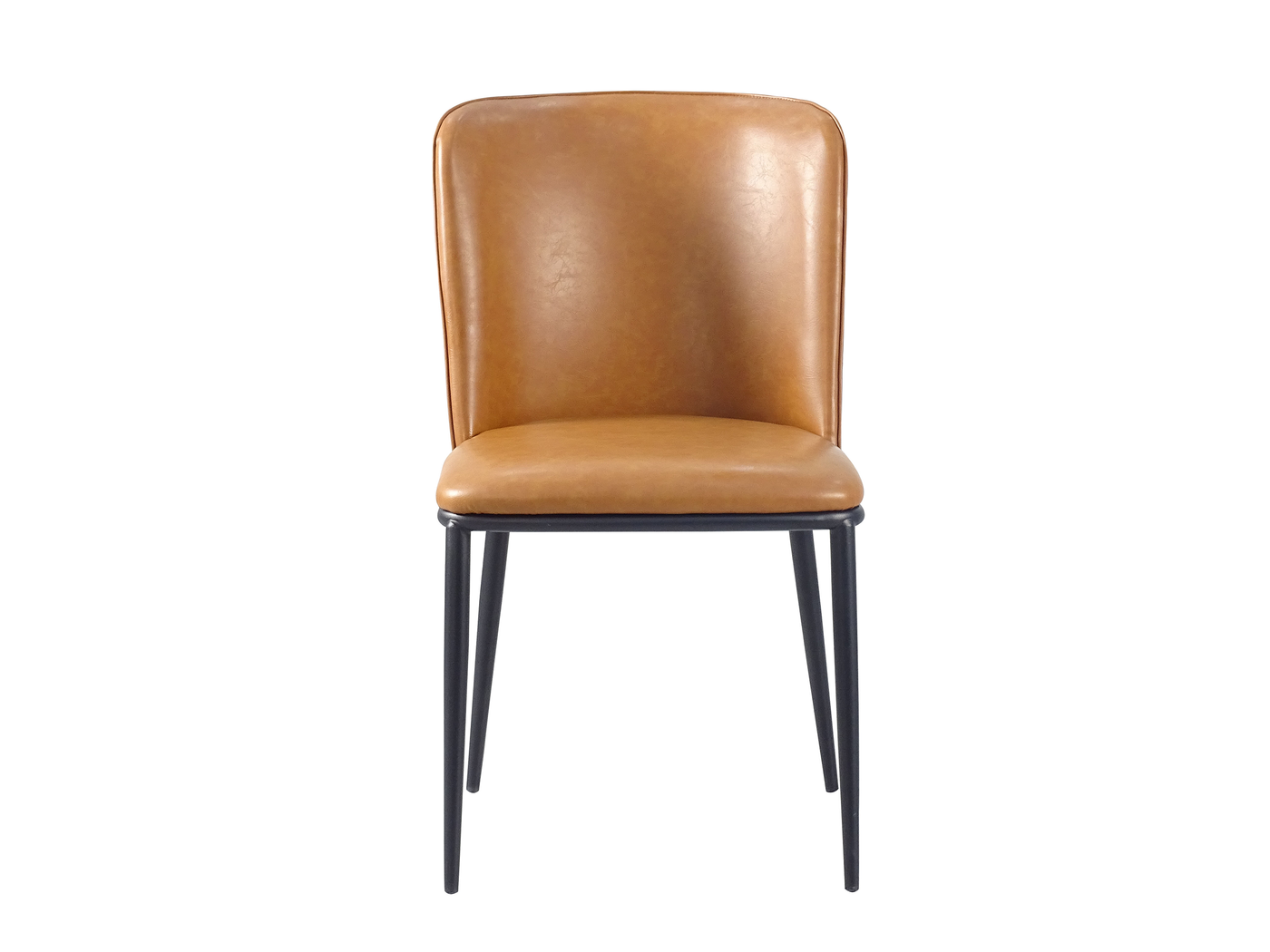

Smooth-front upholstered dining chair in cognac faux leather showing clean inner back surface — GEYA Seating DC-3063
Front View

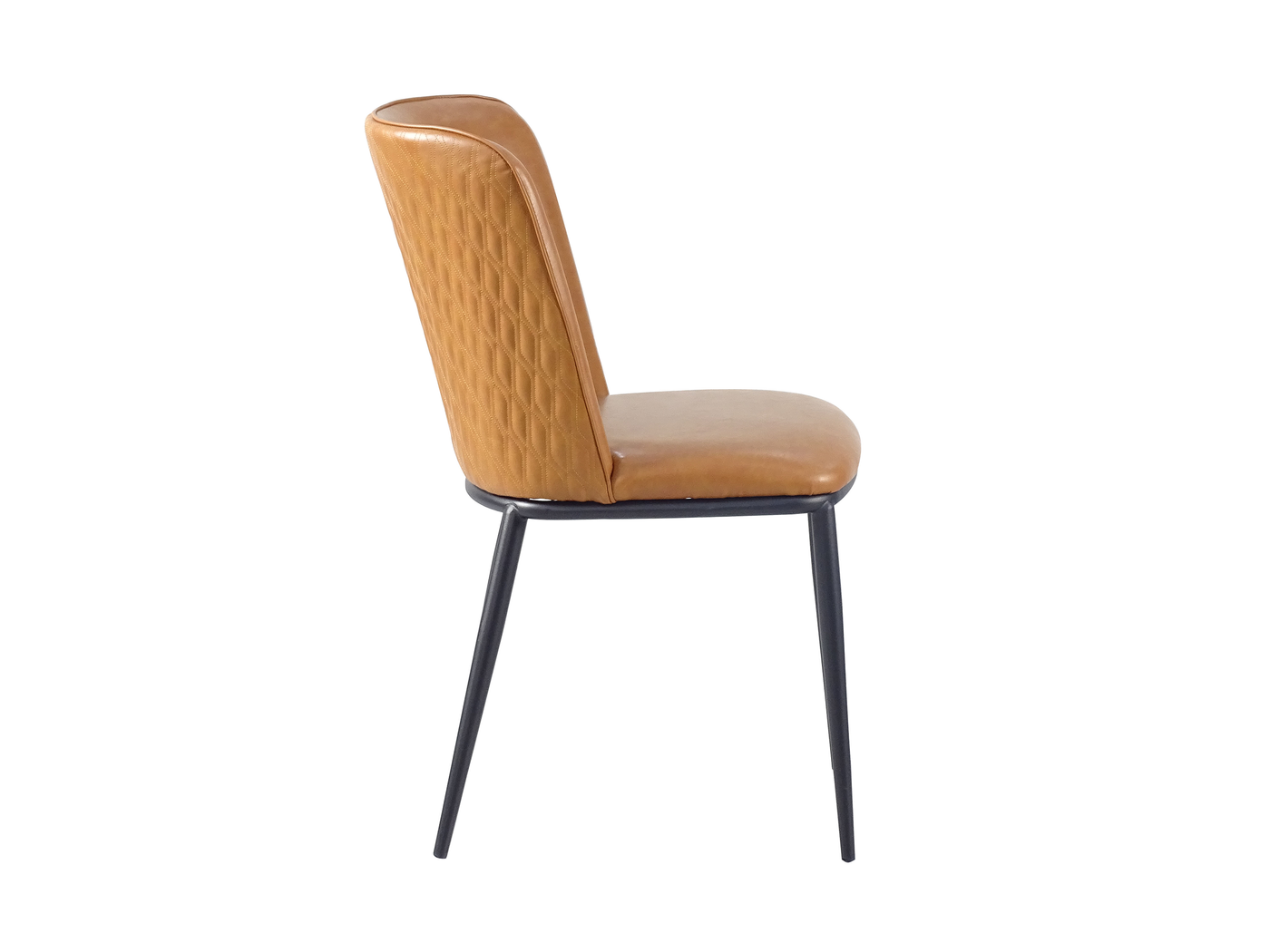

Side profile of upholstered dining chair showing gently curved backrest and 475 mm seat height — DC-3063
Side View

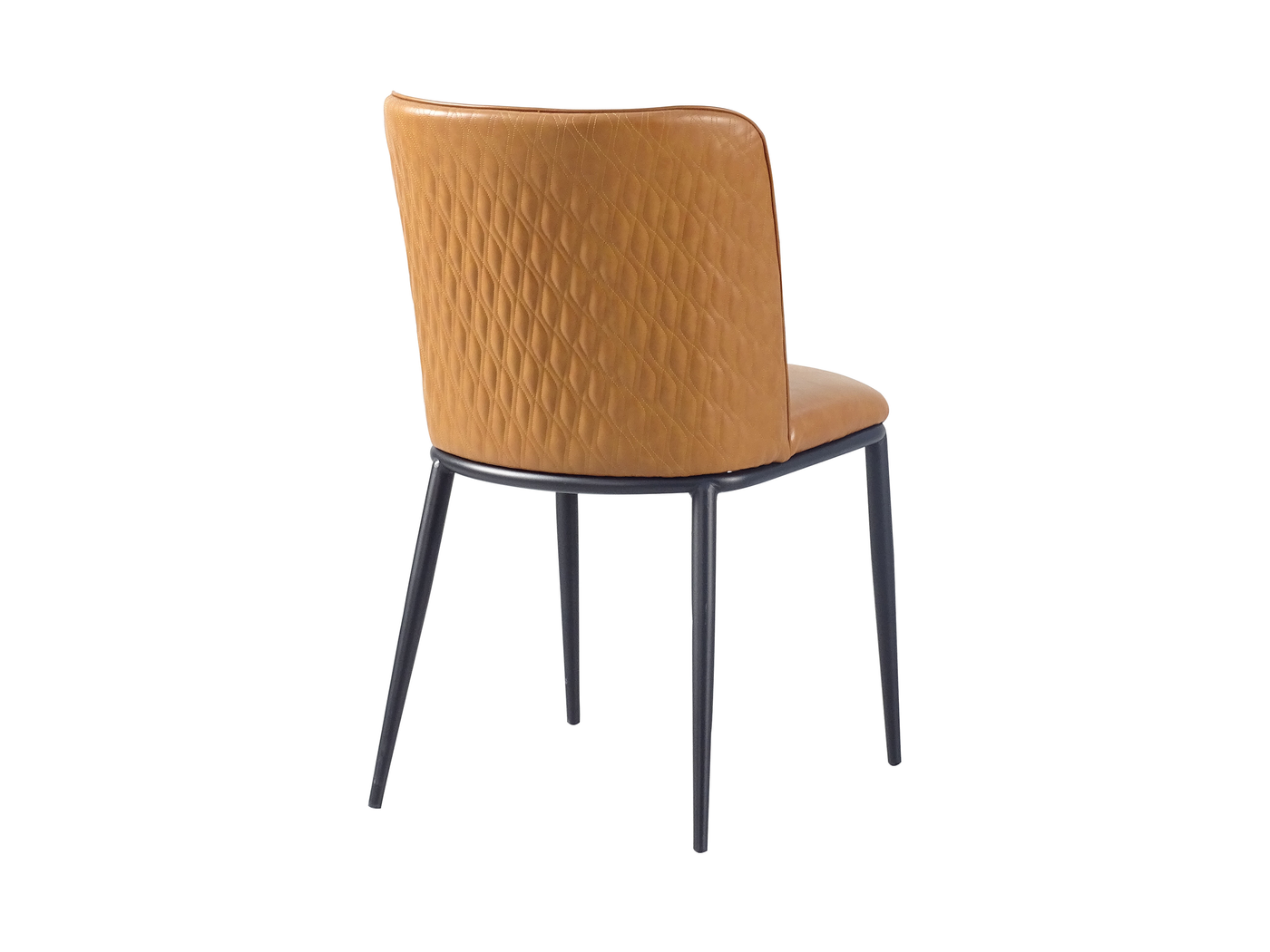

Rear view of dining chair showing continuous diamond-quilted outer back and reduced-diameter black steel legs — DC-3063
Rear View

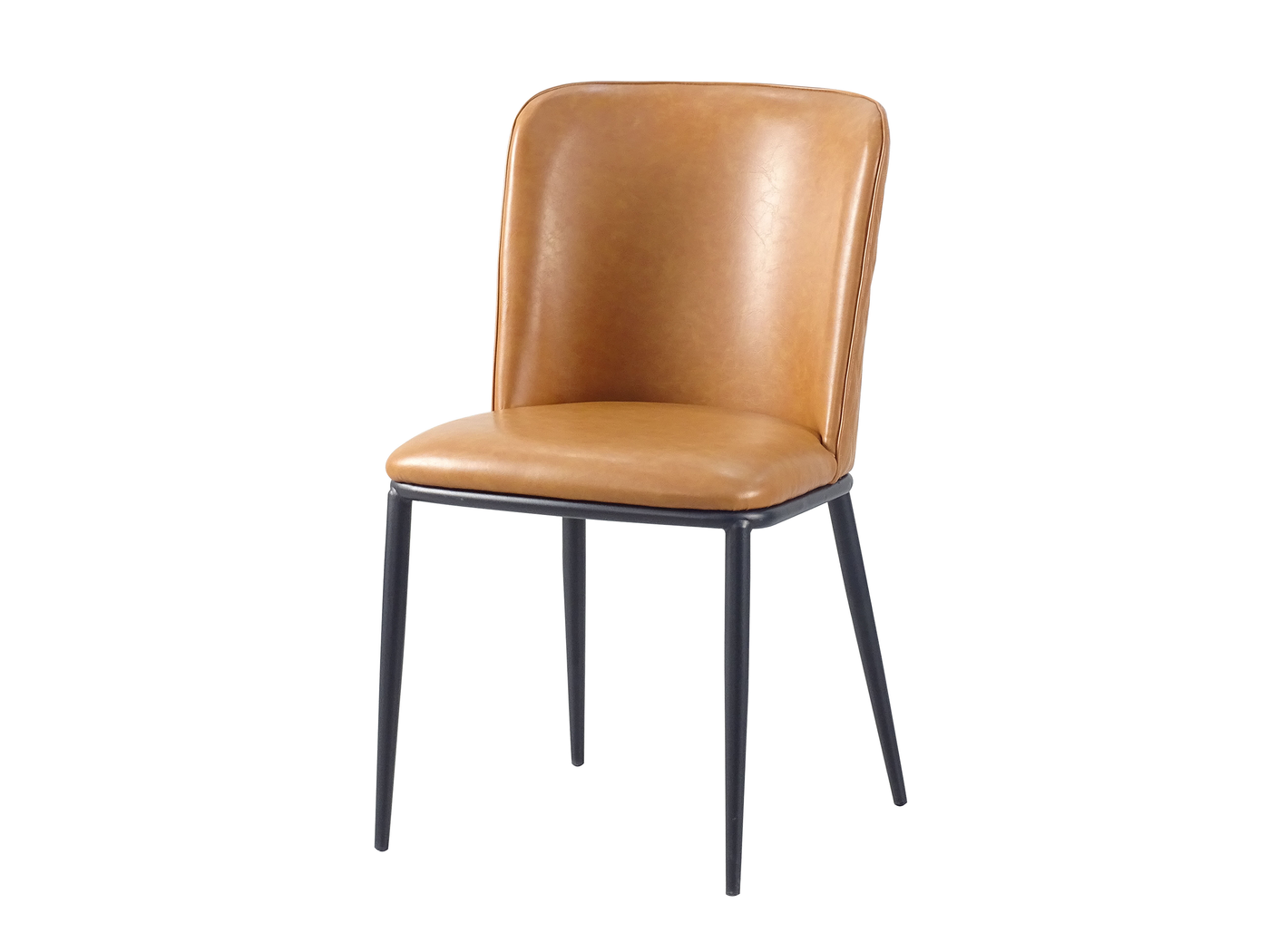

 Three-quarter view of faux leather dining chair on open four-leg black steel base — DC-3063
Three-Quarter View

Diamond-Quilted Faux Leather Side Chairs for Residential Dining Rooms & Open-Plan Interiors

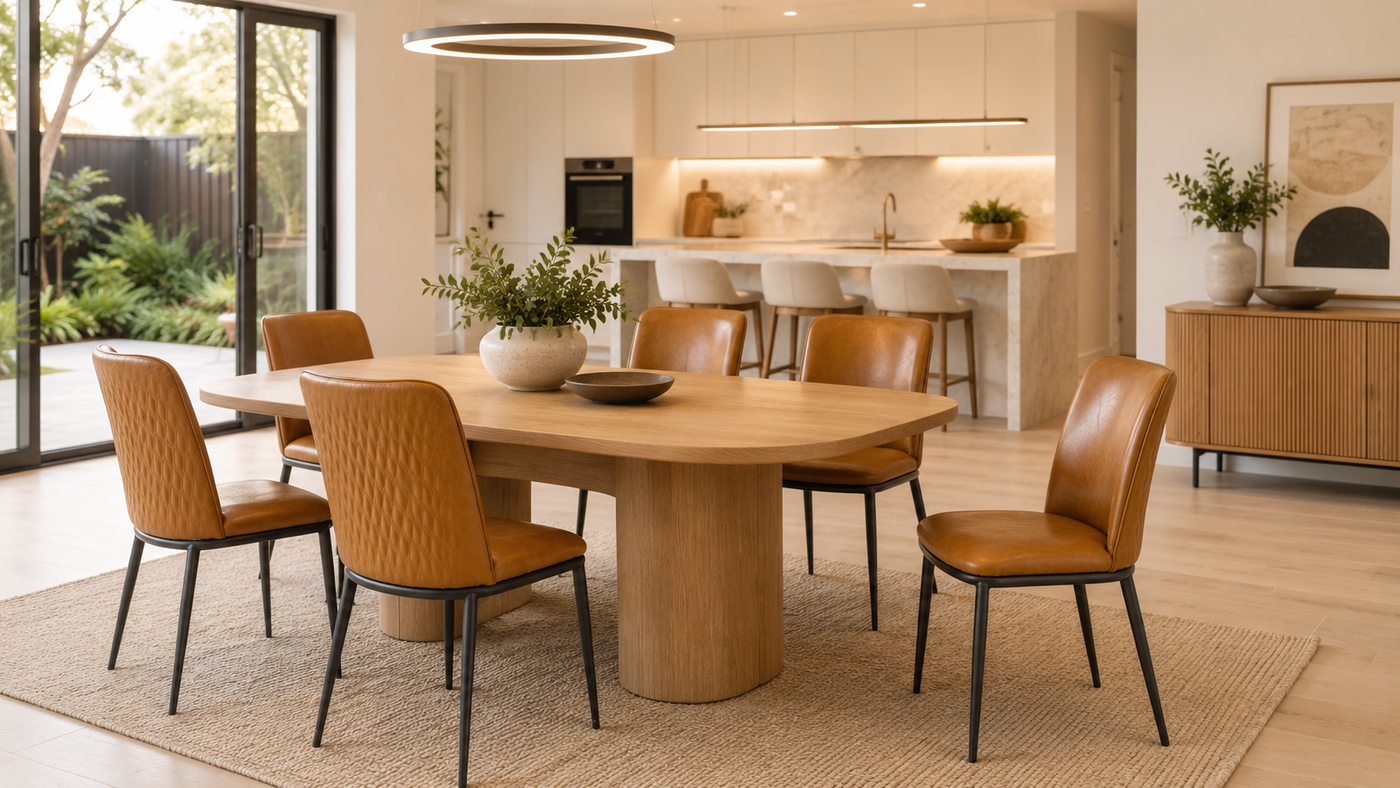

In an open-plan residential interior, DC-3063 mid-back faux leather side chairs in Cognac PU leather are arranged around a rounded-rectangle light oak dining table. The compact armless profile supports orderly chair spacing, while the smooth inner back keeps the table-facing view restrained. Diamond-quilted detailing across the outer back adds visual interest from adjoining kitchen and living areas. Built for residential developments and selected FF&E programme

Diamond-quilted mid-back faux leather side chair in Cognac PU leather arranged around light oak dining table in open-plan residential interior.

Nominal Dimensions & Technical Specifications

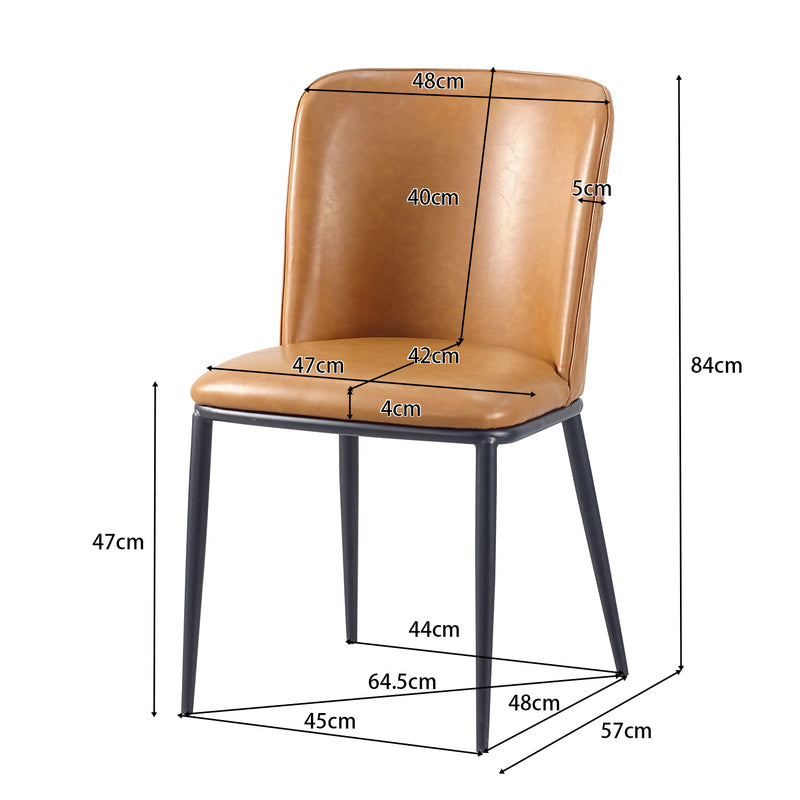

upholstered dining chair dimensions — 480W × 570D × 820H mm, 475 mm seat height, Ø28 mm steel frame-DC-3063
  • Overall Height 840 mm
  • Overall Width 480 mm
  • Overall Depth 570 mm
  • Seat Height 470 mm
  • Seat Width 470 mm
  • Seat Depth 420 mm
  • Seat Cushion Thickness 40 mm
  • Backrest Width 480 mm
  • Backrest Thickness 50 mm
  • Base Footprint Depth 645 mm
  • Base Footprint Width (Front) 450 mm
  • Base Footprint Width (Rear) 480 mm

Note: All dimensions are approximate. A tolerance of ±1.5 cm is expected due to manual measurement and the flexible nature of upholstery materials.

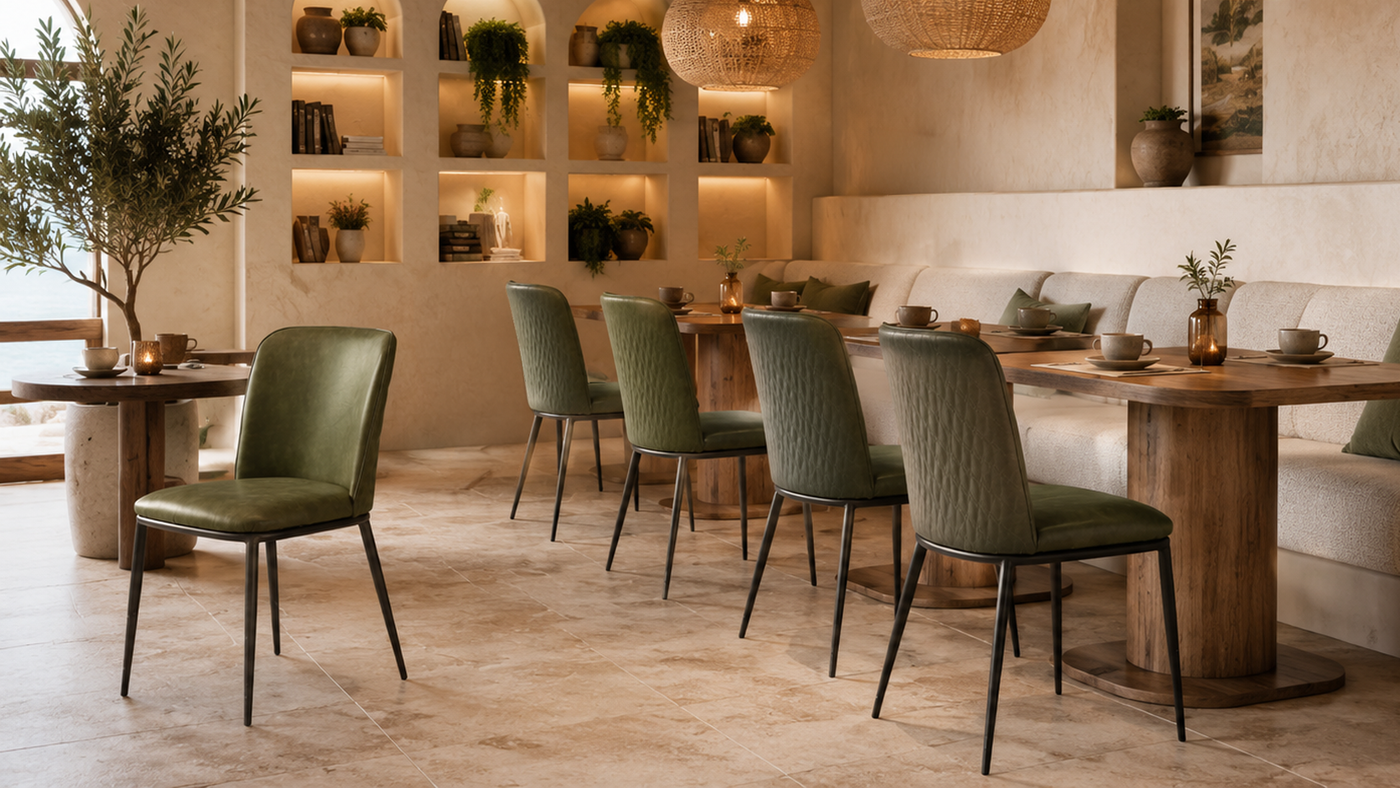

Mid-back faux leather side chair DC-3063 in Olive Green PU leather alongside curved banquette in boutique restaurant dining setting.

Mid-Back Faux Leather Side Chairs for Boutique Restaurant & Hotel Dining Contracts

DC-3063 mid-back faux leather side chairs are shown in Olive Green PU leather opposite a curved upholstered banquette in a boutique restaurant setting. The compact armless profile supports repeated table layouts, while the diamond-quilted outer back introduces visible detail along circulation routes and adjoining dining areas. The colour coordinates naturally with off-white upholstery, timber surfaces and warm neutral finishes. Built for restaurant, hospitality and contract furniture programmes.

Packaging & Container Loading Information

Standard export packing and container loading details for DC-3063 bulk orders.

Product Specifications

Product Size 480 × 579 × 820 mm
Net Weight 6.8 kg

Packaging & Container Loading

Packed qty refers to pieces per packing unit.

Technical Data Standard Export Pack FOB Tianjin High-Density Pack FOB Tianjin
Packed Qty 2 pcs 4 pcs
Carton Size(s) 855 × 530 × 560 mm
A: 690 × 570 × 490 mm
B: 620 × 640 × 460 mm
Total CBM 0.254 m³ 0.375 m³
Packed GW 17.6 kg 24.9 kg
40'HQ Loading Qty 534 pcs USD 25.00 724 pcs USD 27.60
20'GP Loading Qty 220 pcs USD 26.50 296 pcs USD 25.50

Loading quantities and FOB Tianjin data are reference values only. Final details may vary depending on product configuration, order quantity and shipment requirements.

Design Insights & Craftsmanship Details

Design Character

DC-3063 balances a calm front-facing appearance with a more decorative rear profile. The inner back is upholstered in smooth cloud-effect faux leather with no quilting, pull points or vertical divisions, allowing the chair to sit neatly within ordered dining arrangements. A gentle lateral curve and slight recline soften the backrest outline, while the sides draw subtly forward to provide light visual enclosure without forming a heavy shell.

The outer back introduces the chair's defining detail: a continuous diamond-quilted pattern formed by elongated, softly curved cells. This treatment gives the rear surface greater visual depth when chairs face walkways, open-plan living areas or hospitality circulation routes. Tonal piping follows the full backrest perimeter, sharpening the outline without adding contrast colour. The round steel frame reduces from a broader support section beneath the seat to slimmer legs, creating a stable, visually open four-leg base without crossbars.

Technical Specifications

Model Code: DC-3063

Product Type: Dining Chair

Upholstery: Cloud-Effect Faux Leather

Seat Height: 475 mm

Seat Depth: 425 mm

Seat Cushion Thickness: 50 mm

Backrest Thickness: 40 mm

Overall Height: 820 mm

Overall Width: 480 mm

Overall Depth: 570 mm

Frame: Ø28 mm Round Steel Tube, reduced to Ø16 mm at the legs

Base Type: Four-Leg Steel Base

Frame Finish: Black Sand-Grain Powder-Coated Finish

Commercial Fit

The DC-3063 diamond-quilted mid-back faux leather side chair is built for residential dining rooms, boutique restaurant floor plans, and hotel breakfast and private dining contracts — where a compact armless upholstered side chair with a defined outer-back detail is required across multi-seat installations.

C.O.M. upholstery is supported; estimated fabric consumption to be confirmed per project specification. KD packaging structure supports efficient container loading for large-scale project shipments. Built for furniture importers, hospitality procurement managers, and contract project partners sourcing upholstered dining seating at volume.

DINING CHAIR MANUFACTURING

Dining Chair Manufacturing for Global B2B Buyers


Robotic welding of metal dining chair frames at the GEYA Seating factory

Robotic Frame Welding

Skilled upholstery assembly for metal-frame dining chairs at the GEYA Seating factory

Upholstery Assembly

Dining chair components inspected before final assembly at the GEYA Seating factory

Component Inspection & Packing

Export-ready KD packing for upholstered dining chairs at the GEYA Seating factory

Export Preparation

Ordering & Service Information

Warranty & Quality Assurance

We stand behind the quality of our products with a comprehensive manufacturer warranty. Our rigorous quality control process ensures that every piece meets professional durability standards. Please contact our sales team for detailed warranty terms.
Project Compliance & Testing Support

For project-based contract orders and international commercial tenders, GEYA can support technical document review and manufacturing parameter evaluation based on the buyer’s target market, product type, and project requirements.

Upon specific buyer request and prior agreement, selected seating and table programs may be reviewed internally or submitted for third-party testing with reference to applicable safety, stability, strength, and durability benchmarks. For seating programs, relevant references may include EN 12520 and EN 1022 where applicable. For dining table programs, relevant references may include EN 12521 and EN 1730 where applicable.

Testing scope, sample selection, standard version, laboratory arrangement, and final documentation should be confirmed in advance according to the project requirement, destination market, and buyer’s compliance process.
Payment Terms

We support multiple secure B2B payment methods, including T/T and L/C. Flexible payment terms and volume discounts are available for large-scale projects and wholesale orders.
Shipping & Lead Time

Lead times vary depending on order volume and customization requirements. GEYA coordinates production schedules and export arrangements based on project needs. Contact us for a tailored production timeline.
Custom Solutions (OEM/ODM)

We offer extensive customization options, including fabric selections, finishes, and branding. Our team provides tailored OEM/ODM solutions to meet specific project needs. Inquire for a custom quote.
